ICND1 – Drag and Drop

June 4th, 2017 in ICND1 100-105 Go to comments

[am4show have=’p2;’]

Premium Member: You can test your knowledge with these questions first via this link.

[/am4show]

Question 1

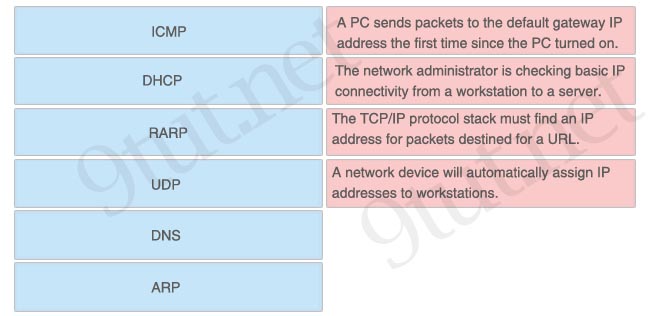

[am4show have=’p2;’]Various protocols are listed on the left On the right are applications for the use of those protocols. Drag the protocol on the left to an associated function for that protocol on the right (Not all options are used)




Answer:

[/am4show]+ ARP: A PC sends packets to the default gateway IP address the first time since the PC turned on.
+ ICMP: The network administrator is checking basic IP connectivity from a workstation to a server.
+ DNS: The TCP/IP protocol stack must find an IP address for packets destined for a URL.
+ DHCP: A network device will automatically assign IP addresses to workstations.

Question 2

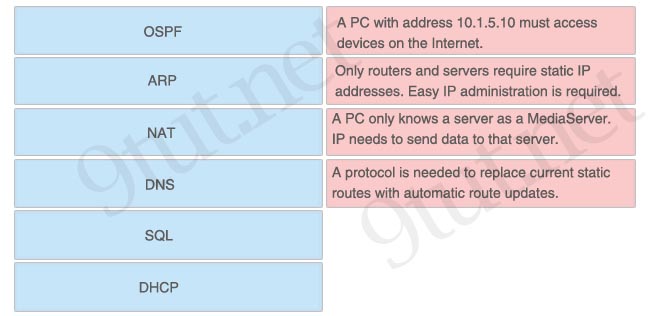

[am4show have=’p2;’]Move the protocol or service on the left to a situation on the right where it would be used. (Not all options are used)




Answer:

[/am4show]+ NAT: A PC with address 10.1.5.10 must access devices on the Internet.
+ DHCP: Only routers and servers require static IP addresses. Easy IP administration is required.
+ DNS: A PC only knows a server as MediaServer. IP needs to send data to that server.
+ OSPF: A protocol is needed to replace current static routes with automatic route updates.

Question 3

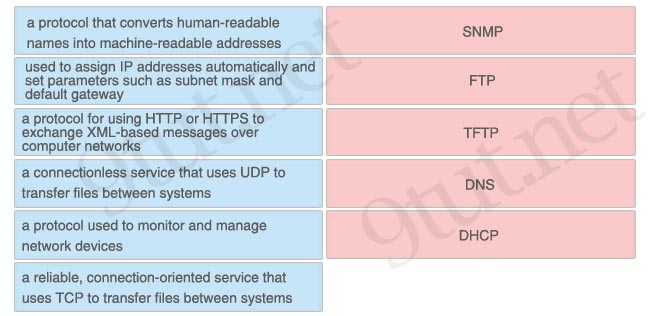

[am4show have=’p2;’]Drag the definition on the left to the correct term on the right. Not all definitions on the left will be used.




Answer:

[/am4show]+ SNMP: a protocol used to monitor and manage network devices
+ FTP: a reliable, connection-oriented service that uses TCP to transfer files between systems
+ TFTP: a connectionless service that uses UDP to transfer files between systems
+ DNS: a protocol that converts human-readable names into machine-readable addresses
+ DHCP: used to assign IP addresses automatically and set parameters such as subnet mask and default gateway

Question 4

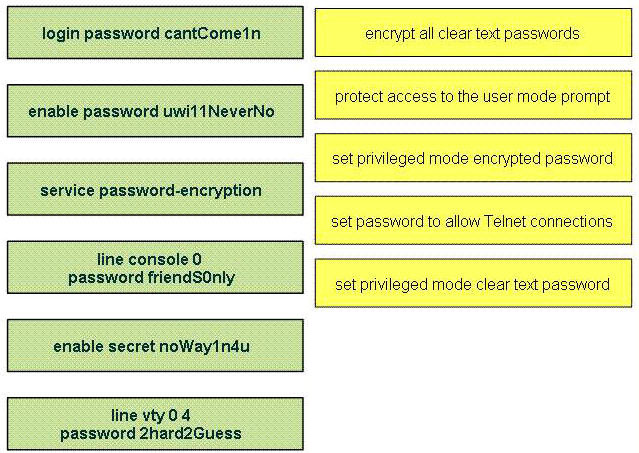

[am4show have=’p2;’]Drag the appropriate command on the left to the configuration task it accomplishes (not all options are used)

ICND1_dragAndDrop_question_1_passwords



Answer:

[/am4show]

service password-encryption encrypt all clear text passwords
line console 0
password friendS0nly
protect access to the user mode prompt
enable secret noWay1n4u set privileged mode encrypted password
line vty 0 4
password 2hard2Guess
set password to allow Telnet connections
enable password uwi11NeverNo set privileged mode clear text password

Question 5

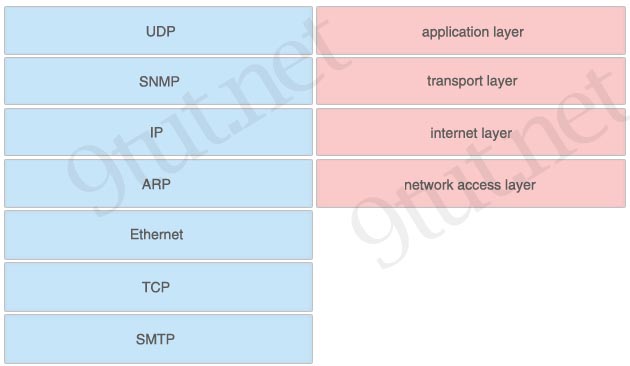

[am4show have=’p2;’]On the left are various network protocols. On the right are the layers of the TCP/IP model. Assuming a reliable connection is required, move the protocols on the left to the TCP/IP layers on the right to show the proper encapsulation for an email message sent by a host on a LAN. (Not all options are used)




Answer:

[/am4show]+ application layer: SMTP
+ transport layer: TCP
+ internet layer: IP
+ network access layer: Ethernet
