ICND1 – Troubleshooting

June 10th, 2017 in ICND1 100-105 Go to comments

[am4show have=’p2;’]

Premium Member: You can test your knowledge with these questions first via this link.

[/am4show]

Question 1

[am4show have=’p2;’]Refer to the exhibit. A TFTP server has recently been installed in the Atlanta office. The network administrator is located in the NY office and has made a console connection to the NY router. After establishing the connection they are unable to backup the configuration file and IOS of the NY router to the TFTP server. What is the cause of this problem?


A. The NY router has an incorrect subnet mask.
B. The TFTP server has an incorrect IP address.
C. The TFTP server has an incorrect subnet mask.
D. The network administrator computer has an incorrect IP address.



Answer: C[/am4show]

Question 2

[am4show have=’p2;’]Refer to the exhibit. A network administrator has configured a Catalyst 2950 switch for remote management by pasting into the console the configuration commands that are shown in the exhibit. However, a Telnet session cannot be successfully established from a remote host. What should be done to fix this problem?

interface vlan 1
ip address 192.168.17.253 255.255.255.240
no shutdown
exit
ip default-gateway 192.168.17.1
line vty 0 15
password cisco
login
exit

A. Change the first line to interface fastethernet 0/1.
B. Change the first line to interface vlan 0/1.
C. Change the fifth line to ip default-gateway 192.168.17.241.
D. Change the fifth line to ip route 0.0.0.0 0.0.0.0 192.168.17.1.
E. Change the sixth line to line con 0.



Answer: C[/am4show]

Question 3

[am4show have=’p2;’]Refer to the exhibit. The two connected ports on the switch are not turning orange or green. What would be the most effective steps to troubleshoot this physical layer problem? (Choose three)


A. Ensure that the Ethernet encapsulations match on the interconnected router and switch ports.
B. Ensure that cables A and B are straight-through cables.
C. Ensure cable A is plugged into a trunk port.
D. Ensure the switch has power.
E. Reboot all of the devices.
F. Reseat all cables.



Answer: B D F[/am4show]

Explanation

The ports on the switch are not up indicating it is a layer 1 (physical) problem so we should check cable type, power and how they are plugged in.

Question 4

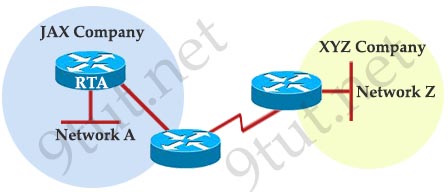

[am4show have=’p2;’]Refer to the exhibit. A person is trying to send a file from a host on Network A of the JAX Company to a server on Network Z of the XYZ Company. The file transfer fails. The host on Network A can communicate with other hosts on Network A. Which command, issued from router RTA, would be the most useful for troubleshooting this problem?


A. show flash:
B. show history
C. show version
D. show interfaces
E. show controllers serial



Answer: D[/am4show]

Question 5

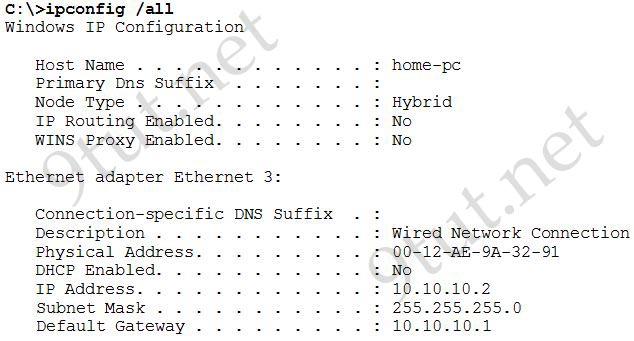

[am4show have=’p2;’]Refer to the exhibit. A user cannot reach any web sites on the Internet, but others in the department are not having a problem. What is the most likely cause of the problem?


A. IP routing is not enabled.
B. The default gateway is not in the same subnet.
C. A DNS server address is not reachable by the PC.
D. A DHCP server address is not reachable by the PC.
E. NAT has not been configured on the router that connects to the Internet.



Answer: C[/am4show]

Question 6

[am4show have=’p2;’]Refer to the exhibit. A network administrator is troubleshooting a connectivity problem on the serial interfaces. The output from the show interfaces command on both routers shows that the serial interface is up, line protocol is down. Given the partial output for the show running-config in the exhibit, what is the most likely cause of this problem?


A. The serial cable is bad.
B. The MTU is incorrectly configured.
C. The Layer 2 framing is misconfigured.
D. The IP addresses are not in the same subnet.



Answer: C[/am4show]

Question 7

[am4show have=’p2;’]While troubleshooting a connectivity issue from a PC you obtain the following information:
Local PC IP address: 10.0.0.35/24
Default Gateway: 10.0.0.1

Remote Sever: 10.5.75.250/24

You then conduct the following tests from the local PC:
Ping 127.0.0.1 – Successful
Ping 10.0.0.35 – Successful
Ping 10.0.0.1 – Unsuccessful
Ping 10.5.75.250 – Unsuccessful

troubleshootingconnectivity

What is the underlying cause of this problem?

A. A remote physical layer problem exists.
B. The host NIC is not functioning.
C. TCP/IP has not been correctly installed on the host.
D. A local physical layer problem exists.



Answer: D[/am4show]

Question 8

[am4show have=’p2;’]Refer to the exhibit. A host is connected to switch port fa0/3. The host and switch have been fully configured for IP connectivity as shown. However, the indicator LED on switch port fa0/3 is not on, and the host cannot communicate with any other hosts including those connected to VLAN 2 on the same switch. Based on the given information, what is the problem?


A. switch port fa0/3 is not configured as a trunk port
B. there is a bad cable
C. the switch has been assigned an incorrect subnet mask
D. switch port fa0/3 has been blocked by STP
E. the switch and the host must be in the same subnet



Answer: B[/am4show]

Question 9

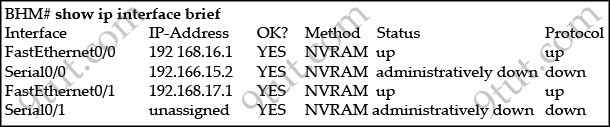

[am4show have=’p2;’]Refer to the exhibit:


Serial0/0 does not respond to a ping request from a host on the FastEthernet0/0 LAN. How can this problem be corrected?

A. Enable the Serial 0/0 interface.
B. Correct the IP address for Serial 0/0.
C. Correct the IP address for FastEthernet 0/0.
D. Change the encapsulation type on Serial 0/0.
E. Enable autoconfiguration on the Serial 0/0 interface.



Answer: A[/am4show]

Explanation

Serial0/0 is “administratively down”, that means this interface is shutting down.

Question 10

[am4show have=’p2;’]Refer to the exhibit. Why was this message received?

Router#telnet 10.3.1.2
Trying 10.3.1.2 … Open

Password required, but none set
[Connection to 10.3.1.2 closed by foreign host]
Router#

A. No VTY password has been set.
B. No enable password has been set.
C. No console password has been set.
D. No enable secret password has been set.
E. The login command has not been set on CON 0
F. The login command has not been set on the VTY ports.



Answer: A[/am4show]

Question 11

[am4show have=’p2;’]Refer to the exhibit. Which two of the output fields could help you determine if a broadcast storm has occurred? (Choose two.)


A. giants
B. no buffer
C. collisions
D. ignored
E. dribble condition



Answer: B D[/am4show]
