Implementation SIM
Question:
You have been hired by PC Consultants Incorporated to document the layout of the network. Complete the following tasks:
Complete the network topology shown in the graphic by dragging the labels below with the appropriate router types, interface types and IP addresses to the graphic. Find the information you need by using the router console attached to the Home router.
Answer and Explanation:

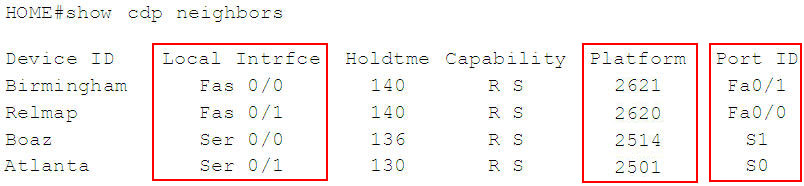

First we have to find out the types of these routers to place them in correct positions by using show cdp neighbors command on HOME router:
There are 3 columns we should pay more attention to:
+ Local Intrfce (Local Interface): the interface on the device you are using “show cdp neighbors” command. In this case it is the interface of HOME router
+ Platform: the platform of neighbor device
+ Port ID: the neighbor device’s port or interface which links to the HOME router

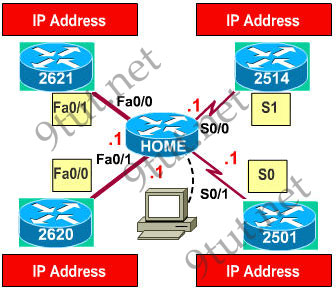

From the exhibit, the “Local Interface”, “Platform” and “Port ID” columns, we can identify where these four routers should be placed and their corresponding associated ports

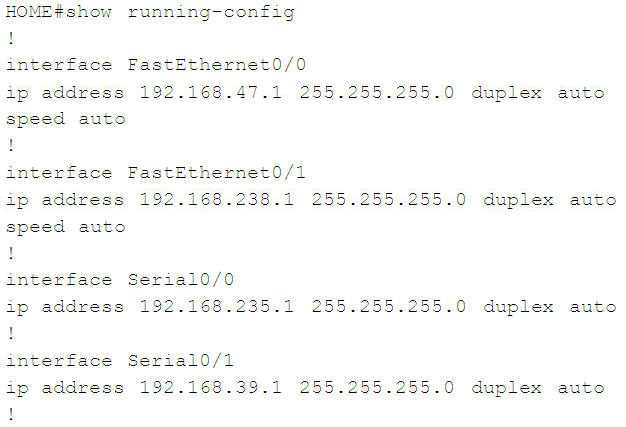

Finally, we need to identify the IP addresses of four interfaces on neighboring routers using show running-config command:

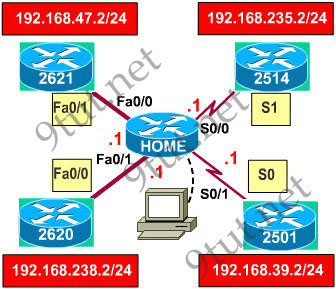

And we can easily assign corresponding ip addresses to four neighbor routers, which are on the same network with HOME router’s interfaces
Please remember in the real CCNA Exam the routers’ types, ip addresses and interfaces may be different! So make sure you understand how it works!
Other lab-sims in the ICND 1 Exam:
ICND 1 – Show Configuration Sim
Frame Relay Sim – Hotspot (on 9tut.com)
Other lab-sims might appear in the real ICND 1 exam, read and understand them if you have enough time!
ICDN1, 778 score :/
Got this Q and another one.
thanks
hi to all,
well i want to say the that i have failed the exam icnd1 by just 4 marks,my score was 800 exact and passing is 804,god damit!!!!!any ways i m not frustrated becoz i have done ggod in the first attempt,i want want to tell u that the exam is very easy as a piece of cake .i have used exam cram book and pass4sure version 3 latest.i failed becoz i skipped the dhcp part and sum silly mistakes in subnetting and routing.i fininshed all in 55 minutes.any ways i will re attempt on 7 again.i will give my best shot
Man I failed ICND1 again. After the first test I thought i had it this time I found this site and these sims were on both the exams except this time i know i got these correct. My second test really through me as I got a lot of questions about Frame Relay and Security. I was not prepared for these questions so make sure you over lap a little bit into ICND2 material cause i had about 5 questions relating to these subjects 2 drag and drop a sim using only show commands to detect security issues with set up on both a router and switch and 2 general questions which i thought i had. I wish they would let you know atleast which questions you got wrong cause i thought i nailed it.
Isn’t the solution wrong? 2621 and 2620 should be reversed in the diagram.
Yes, thanks for your detection. I updated this page!
good stuff….just passed the test….today…
This lab was on it
Hi
I am taking ICND1 next week could u please assist with the latest material,
thanks
I wonder…wouldn’t it be easiest just to do a “show cdp neighbors detail” and get everything in one fell swoop?
just wondering, is there another way to solve this SIM if in case CISCO disables the “show cdp neighbors” command ?
There is no way we can solve this sim without the “show cdp neighbors” command.
This one was on my exam today, quiet easy to do once you have seen the solution.
Show CDP Neighbor and show interface has all the information to resolve this question.
Would recommend this website for all the Sims and pass4sure for the other questions – worked for me, I passed.
Thanks 9tut
I need to know if when the student starts the test does receive 300 pounds? In other words the score is got from 300 to 1000?
I think if we use the command show cdp neighbors detail this question could be aswered more quiklly because this command can show the neighboor ip address!!!
Had this yesterday, only require two commands. sh cdp neighbors & sh cdp neighbors detail.
The sh cdp entry does not work.
I had this question today.
I ran show CDP neighbor and the show ip interfaces brief (lazy!!! LOL) to get the addresses.
Yes, I should have run either show run as show ip int br does not display the subnet mask.
I already knew that the subnet mask was /24 as the answers listed had that mask already.
hmmmm, now that i see it, show cdp neighbors detail doesn’t list the subnet masks either…
The point of using only “show run” is that it demonstrates that you know subnetting, i.e. the IP of each attached device must be in the subnet of the router interface. I heard you can get marked down for using “show cdp neigh det” instead of just “show run”. This sim was on yesterdays exam for me as well, verbatim I think.
