ICND2 – EtherChannel Questions

October 29th, 2017 in ICND2 200-105 Go to comments

[am4show have=’p2;’]

Premium Member: You can test your knowledge with these questions first via this link.

[/am4show]

Question 1

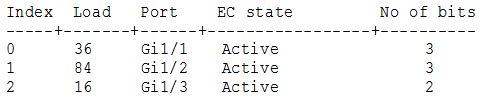

[am4show have=’p2;’]Refer to the exhibit. While troubleshooting a switch, you executed the “show interface port-channel 1 etherchannel” command and it returned this output. Which information is provided by the Load value?


A. the percentage of use of the link
B. the preference of the link
C. the session count of the link
D. the number source-destination pairs on the link



Answer: D[/am4show]

Explanation

The way EtherChannel load balancing works is that the switch assigns a hash result from 0-7 based on the configured hash method ( load balancing algorithm ) for the type of traffic. This hash result is commonly called as Result Bundle Hash (RBH).

Now we need to convert Load value from Hexadecimal to Binary numbers. Therefore:
+ Gi1/1: 36 (Hex) = ‭00110110‬ (Bin) -> Bits 1, 2, 4, 5 are chosen (read from right to left, start from 0)
+ Gi1/2: 84 (Hex) = ‭10000100‬ (Bin) -> Bits 2, 7 are chosen
+ Gi1/3: 16 (Hex) = ‭00010110‬ (Bin) -> Bits 1, 2, 4 are chosen

Therefore if the RBH is 5, it will choose Gi1/1. If RBH is 4, it will choose Gi1/1 and Gi1/3 interfaces. If RBH is 2 it will choose all three above interfaces. And the bit sharing ratio is 3:3:2 (from “No of bits” column) hence two links has higher probability of getting utilized as compared to the third link.

Question 2

[am4show have=’p2;’]Which two actions must you take to configure a PAgP EtherChannel between two switches, S1 and S2? (Choose two)

A. Configure the channel-group 1 mode auto command on S1.
B. Configure the channel-group 1 mode desirable command on S2.
C. Configure the channel-group 1 mode active command on S2.
D. Configure the channel-group 1 mode on command on S2.
E. Configure the channel-group 1 mode active command on S1.



Answer: A B[/am4show]

Explanation

In PAgP we only have two modes: auto and desirable.
