ICND2 – PPPoE Questions

March 23rd, 2017 in ICND2 200-105 Go to comments

Question 1

Explanation

In the Dialer interface, we can use the “ip address negotiated” command to ask for an IP address from the PPPoE Server.

Question 2

Explanation

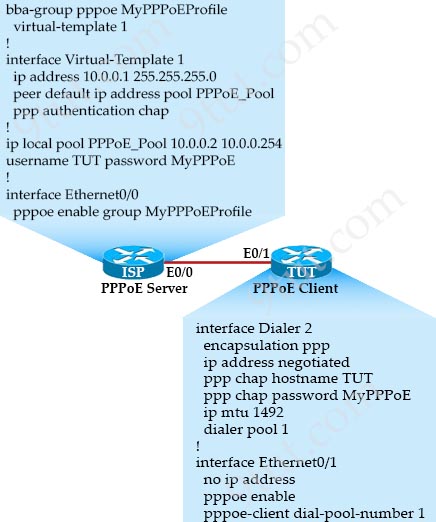

The picture below shows all configuration needed for PPPoE:


There is no Dialer interface on the PPPoE Server so answer “Dialer interface” is not correct. The most suitable answer is “Virtual Template” interface as it contains the pool which is used to assign IP address to the PPPoE Client. But this question is weird because according to the CCNAv3 syllabus, candidates only need to grasp the PPPoE on client-side, not sure why this question asked about PPPoE on Server side. For more information about PPPoE, please read our PPPoE tutorial.

Question 3

Question 4

Explanation

In the Dialer interface, we can use the “ip address negotiated” command to ask for an IP address from the PPPoE Server.

Question 5

Explanation

The picture below shows all configuration needed for PPPoE:


There is no Dialer interface on the PPPoE Server so answer “Dialer interface” is not correct. The most suitable answer is “Virtual Template” interface as it contains the pool which is used to assign IP address to the PPPoE Client. But this question is weird because according to the CCNAv3 syllabus, candidates only need to grasp the PPPoE on client-side, not sure why this question asked about PPPoE on Server side. For more information about PPPoE, please read our PPPoE tutorial.

Comments (9) Comments
  1. Anonymous
    April 3rd, 2017

    Q3. Which command do you enter to enable an interface to support PPPoE on a client?

    Answer is:
    B. Dev1(config-if)# pppoe-client dial-pool-number 1

    https://learningnetwork.cisco.com/docs/DOC-27502

  2. Anonymous
    April 5th, 2017
  3. Kumo
    April 28th, 2017

    pppoe-client dial-pool-number interface subcommand is used to add the interface to the same pool number configured on the dailer interface.

    pppoe enable subcommand is used to enable PPPoE on the interface.

  4. Digi
    May 21st, 2017

    With command pppoe-client dial-pool-number 1 you add interface to the same pool number like dialer, but you enable ppoe too. After this one command is not necessary use ppoe enable (i think that IOS add this command to the running conf).
    Cisco question 🙁

  5. smitty
    May 24th, 2017

    Once you add ‘pppoe-client dial-pool-number 1’ to the physical interface, IOS automatically adds ‘pppoe enable’ to the interface also.

  6. Sebi
    July 20th, 2017

    Is Q2 really on the exam because the objectives explicitly state client side. The instructor of my training videos mentioned that we don’t need to know the server side for the CCNA exam….server side is for CCIE not even CCNP. This kind of stuff drives me nuts because then you think what else is there in the dark. 🙁

  7. no
    August 1st, 2017

    @Sebi, yeah, it is. I have no way to know if it was a “diagnostic question” for Cisco’s eyes only, but I had it.

  8. Turner
    October 4th, 2017

    Your answer its incorrect because Configuring the ip address command within a virtual template is not recommended. Configuring a specific IP address in a virtual template can result in the establishment of erroneous routes and the loss of IP packets.
    https://www.cisco.com/c/en/us/td/docs/ios/12_2/dial/configuration/guide/fdial_c/dafvrtmp.html

  9. Turner
    October 4th, 2017

    than the answer correct is dialer interface
