Show Configuration Sim

April 11th, 2010 in LabSim Go to comments

This task requires the use of various show commands from the CLI of Router1 to answer 5 multiple-choice questions. This does not require any configuration.

show_config_question

NOTE: The show running-configuration and the show startup-configuration commands have been disabled in this simulation.
To access the multiple-choice questions, click on the numbered boxes on the right of the top panel.
There are 5 multiple-choice questions with this task. Be sure to answer all 5 questions before leaving this item.

Question 1:

What is the subnet broadcast address of the LAN connected to Router1?
A – 192.168.136.15
B -192.168.136.31
C -192.168.136.63
D – 192.168.136.127
E – 255.255.255.255

Answer: A

Explanation:

The “show running-configuration” and “show startup-configuration” have been disabled as stated above so we should use the show ip interface command to get information about the LAN network connected to Router1.

show_config_question_answer_1

From the output we learn that the ip address of the FastEthernet interface of Router1 is 192.168.136.1 and the subnet mask is /28. Therefore:

Increment: 16 (/28=1111 1111.1111 1111.1111 1111.1111 0000)
Network address: 192.168.136.0
Broadcast address: 192.168.136.15 (15 = 0 + 16 – 1)

-> The broadcast address of this subnetwork is 192.168.136.15

Question 2:

What is the bandwidth on the WAN interface of Router1?
A – 16 Kbit/sec
B – 32 Kbit/sec
C – 64 Kbit/sec
D – 128 Kbit/sec
E – 512 Kbit/sec
F – 1544 Kbit/sec

Answer: E

Explanation:

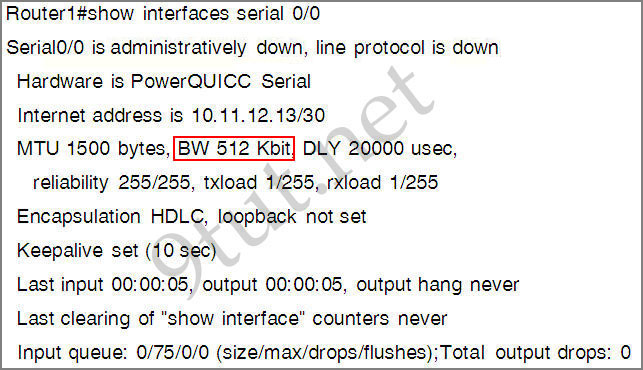

To find out the bandwidth on the WAN (serial) interface of Router1 we need to use the show interfaces serial 0/0 command:

show_config_question_answer_2

Therefore the bandwidth on the WAN is 512 Kbit/sec.

Question 3:

What interfaces on Router1 have not had any configurations applied? (Choose two)

A – Ethernet 0
B – FastEthenet 0/0
C – FastEthernet 0/1
D – Serial 0
E – Serial 0/0
F – Serial 0/1

Answer: C F

Explanation:

Use the show ip interface brief to identify what interfaces Router 1 have. Notice that Router1 does not have Ethernet 0 and Serial 0 interfaces. FastEthernet 0/0 and Serial 0/0 were configured with their IP addresses therefore only FastEthernet 0/1 and Serial0/1 have not had any configurations applied.

Question 4:

Including the address on the Router1 FastEthernet interface, how many hosts can have IP addresses on the LAN to which Router1 is connected?
A – 6
B – 14
C – 62
D – 128

Answer: B

Explanation:

The mask address of interface Fa0/0 of Router1 is /28 (as shown in question 1), which has four 0 bits (1111 1111.1111 1111.1111 1111.1111 0000). Therefore there are 24 – 2 = 14 assignable IP addresses for hosts on the LAN.

Question 5:

The hosts in the LAN are not able to connect to the Internet. Which commands will correct this issue?
A – Router1(conf)# interface fa0/0
Router1(conf-if)# no shutdown
B – Routed (conf)# interface fa0/1
Router1(conf-if)# no shutdown
C – Router1(conf)# interface s0/0
Router1(conf-if)# no shutdown
D – Router1(conf)# interface s0/1
Router1(conf-if)# no shutdown
E – Router1(conf)# interface s0/0
Router1(conf-if)# ip address 10.11.12.13 255.255.255.252
F – Router1(conf)# interface s0/1
Routerl (conf-if)# ip address 10.11.12.13 255.255.255.252


Answer: C

Explanation:

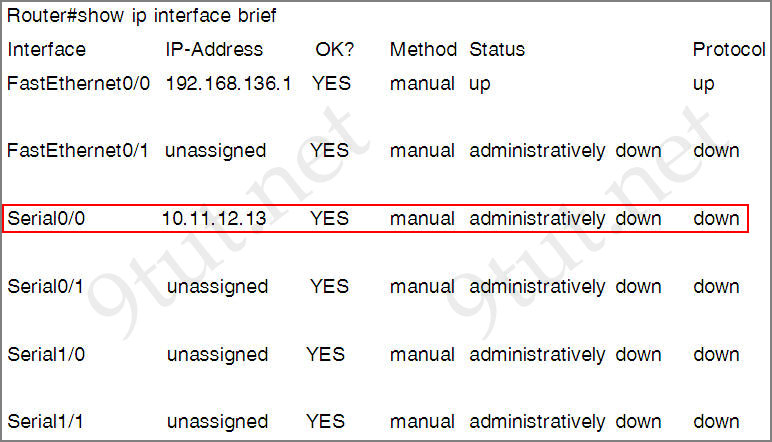

We should check the statuses of all the interfaces on Router1 with the show ip interface brief command:

show_config_question_answer_4

From the output, we learn that the status of Serial0/0 interface which connects to ISP router is currently “administratively down”. This status indicates this interface is shutting down so we need to turn it on.

Other lab-sims in the ICND 1 Exam:

ICND 1 – RIPv2 SIM

ICND 1 – Implementation SIM

ICND 1 – ARP Testlet

ICND 1 – Implementation Sim 2

Frame Relay Sim – Hotspot (on 9tut.com)

Other lab-sims might appear in the real ICND 1 exam, read and understand them if you have enough time!
